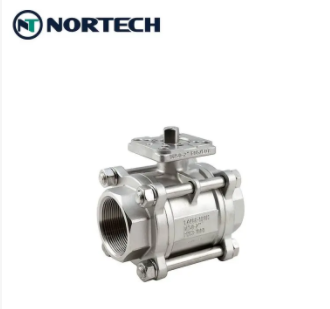

The working principle of the three-piece ball valve is as follows:
One, the opening process
In the closed position, the ball is pressed against the valve seat by the mechanical pressure of the valve stem.
When the handwheel is turned counterclockwise, the valve stem moves in the opposite direction, and the angular plane at the bottom causes the ball to separate from the valve seat.
The valve stem continues to lift and interacts with the guide pin in the spiral groove of the valve stem, causing the ball to start rotating without friction.
Until it reaches the fully open position, the valve stem is raised to the limit position and the ball rotates to the fully open position.
Second, the closing process
When the handwheel is turned counterclockwise, the valve stem moves in the opposite direction, and the angular plane at the bottom causes the ball to separate from the valve seat.
The valve stem continues to lift and interacts with the guide pin in the spiral groove of the valve stem, causing the ball to start rotating without friction.
Until it reaches the fully open position, the valve stem is raised to the limit position and the ball rotates to the fully open position.
Second, the closing process
When closing, turn the handwheel clockwise, the valve stem begins to drop and the ball leaves the valve seat and starts to rotate.
Continue to rotate the handwheel, the valve stem is acted on by the guide pin embedded in the upper spiral groove, so that the valve stem and the ball rotate 90° at the same time.
When it is about to close, the ball has rotated 90° without contact with the valve seat.
In the last few turns of the handwheel, the angular plane at the bottom of the valve stem mechanically wedges and presses the ball, making it tightly pressed against the valve seat to achieve a complete seal.
Continue to rotate the handwheel, the valve stem is acted on by the guide pin embedded in the upper spiral groove, so that the valve stem and the ball rotate 90° at the same time.
When it is about to close, the ball has rotated 90° without contact with the valve seat.
In the last few turns of the handwheel, the angular plane at the bottom of the valve stem mechanically wedges and presses the ball, making it tightly pressed against the valve seat to achieve a complete seal.
